FS-NT70-10-IR-SMK1

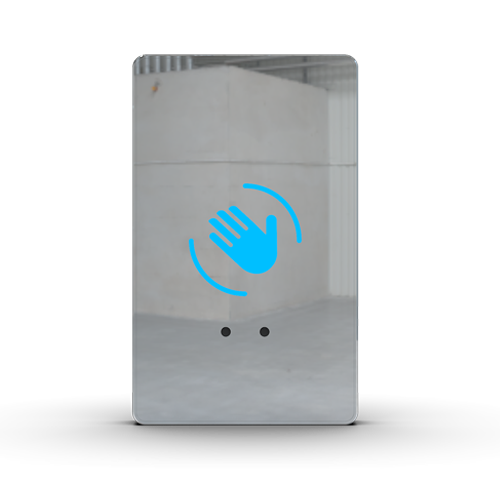

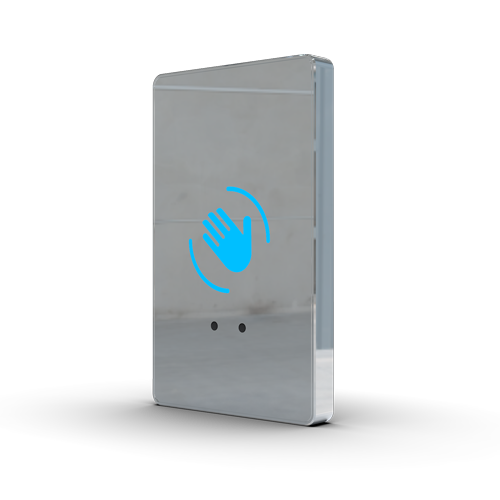

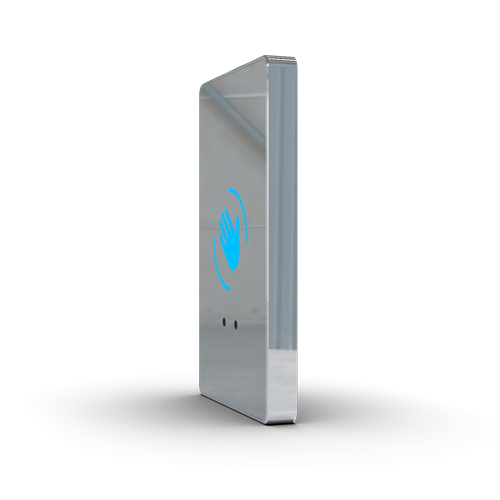

All Metal Exit Buttons
The FASEEN All-metal Touchless Button use lR technology to reguest egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required this sensor is idea for use in hospitals, clinics, labs cleanrooms (to reduce the risk of contamination), schools, factories, or offices. Customer can adjust distance of hand detection and door open time for own specific needs.
Quantity:
ADD TO CART
Description
Specifications
Documentation
FAQs
  • Dual voltage, 12~24 VAC/VDC
  • Range adjustable from 5~30 cm
  • Stainless steel single-gang plate
  • 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
  • LED illuminated sensor area for easy identification
  • Quick connect screw-less terminal block
  • Selectable LED colors (turns from blue to green or green to blue) when activated
Output Contact NO/NC/COM
Current Draw 120mA@12VDC
Relay type Form C dry contact, 3A@24VDC
Response time 10ms
LEDs indication Standby blue:light breath function (optional)

Green LED indicator（Activated）
Output duration Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
Mechanical Life 100,000 tests
Sensing range Adjustable, 5-30 cm
Suitable Humidity 0-95% (relative humidity)
Operating Temperature 14°~131° F (-20°~55° C)
Dimensions 4.53 x 2.76 x 0.39 in， (115 x 70 x 10 mm)
Weight 5.11-oz (145g)
Product Datasheet
Datasheet_FS-NTxx-10_v4.pdf
9.98 mb
Product Manual
Manual_FS-NTxx-10_nomodel_v4.pdf
3.39 mb
Sensor remains triggered
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
Sensor triggers unexpectedly
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.
Sensor will not trigger.
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
