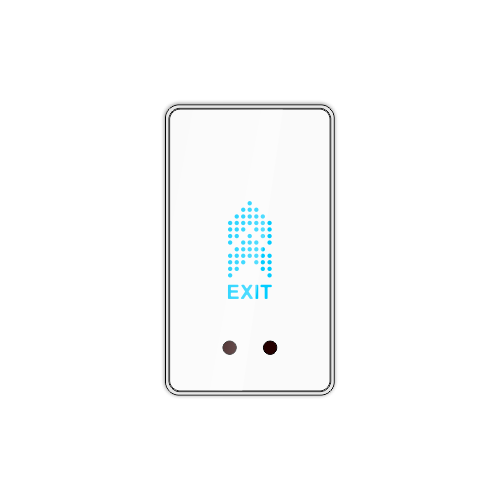

FS-NT50-10-IR-WPJE

Touchless Exit buttons

The FASEEN Touchless Button use lR technology to reguest egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required this sensor is idea for use in hospitals, clinics, labs cleanrooms (to reduce the risk of contamination), schools, factories, or offices. Customer can adjust distance of hand detection and door open time for own specific needs.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Dual voltage, 12~24 VAC/VDC
Range adjustable from 2-3/8″~8″ (6~30 cm)
Stainless steel single-gang plate

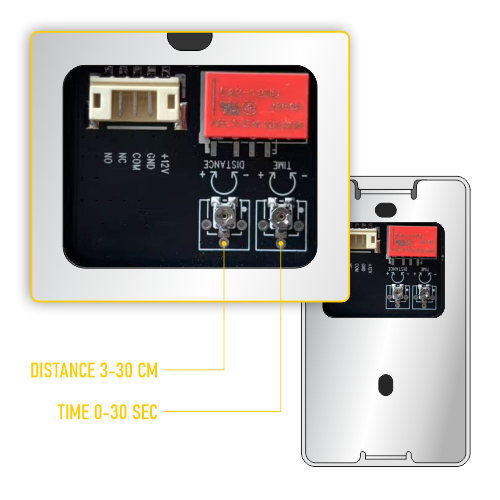

3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
LED illuminated sensor area for easy identification
Quick connect screw-less terminal block
Selectable LED colors (turns from blue to green or green to blue) when activated

Output Contact	NO/NC/COM
Current Draw	120mA@12VDC
Relay type	Form C dry contact, 3A@24VDC
Response time	10ms
LEDs indication	Standby: Blue  Triggered: Green
Output duration	Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
Sensing range	Adjustable, 2-3/8″~8″ (6-20 cm)
Operating Temperature	-4°~131° F (-20°~55° C)

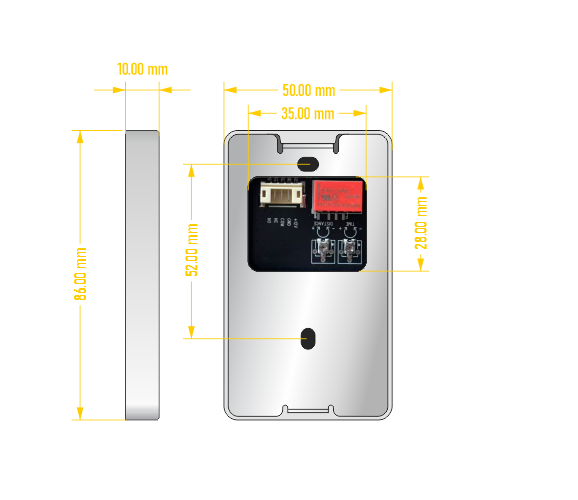

Dimensions	3.38 x 1.97 x 0.39 in ，(86 x 50 x 10 mm)
Weight	1.76-oz (50g)

Product Datasheet

Datasheet_FS-NTxx-10_v4.pdf

9.98 mb

Product Manual

Manual_FS-NTxx-10_nomodel_v4.pdf

3.39 mb

Sensor remains triggered

Answer:

1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.

Sensor triggers unexpectedly

Answer:

1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.

Sensor will not trigger.

Answer:

1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
