FS-PCL19-B70-S

Press Exit buttons

Exit buttons suitable for office buildings, shops, and laboratories! Surface mount design for easy installation; highly sensitive touch response means a simple press is all it takes to open the door—clean and efficient.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Unlock a new access experience with a simple touch. It not only a perfect partner for access control systems, but also a thoughtful detail that elevates the quality of office and commercial spaces.

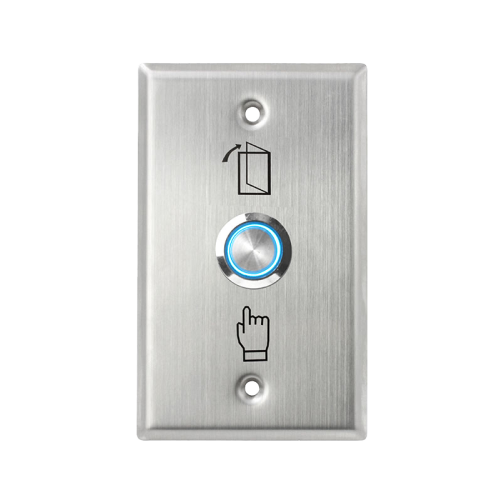

Blue LED changes to Green when activated
Sensor is activated by finger
Optional Back Box
12V DC /24V DC
Buttons diameter 16mm,19mm,22mm optional

Power	12V DC or 24V DC
Output	NO/NC/COM
Suitable for Door	Hollow Door
Led Indicator	Blue (Standby) Green (Activated)
Installation Diameter	19mm (16mm/22mm Optional)
Operating Temp	-20°C~+55°C(14-131F)
Operating Humidity	0-95%(relative humidity)

Product Datasheet

FS-PCL19-v5.pdf

4.6 mb
