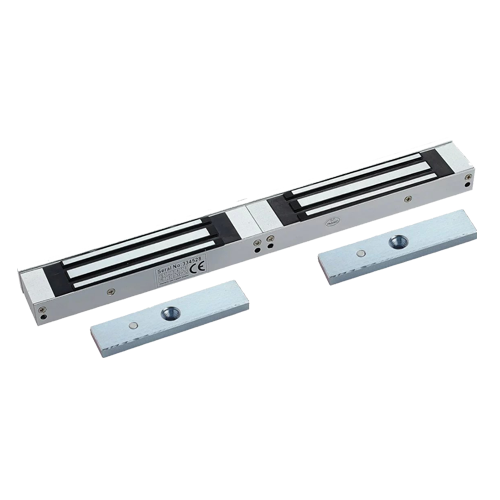

FS-EML500D-5

Magnetic locks

Magnetic locks - known for durability, fast response, high security, and no mechanical wear - are a key part of modern access control systems. They secure sensitive areas in hospitals, schools, and libraries (e.g., equipment rooms, archives) and protect restricted zones in transport hubs like airports, subway, and rail stations (e.g., staff corridors, control rooms), ensuring safety and operational integrity.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Magnetic locks—known for durability, fast response, high security, and zero mechanical wear—are a key part of modern access control systems.

FS-EML500D-5 features:

Holding force 500 kg
No residual magnetism
MOV Surge protection
Anodized aluminum housing
Adjustable mounting bracket
Complete mounting hardware for typical installations
Additional brackets are available for easy mounting or in atypical situations
12/24VDC Selectable

Holding force	500kg (1100 Lbs)
Power	12/24 VDC (selectable)
Current draw	350mA@12V / 200mA@24V
Output signal	NO/NC/COM
LEDs indication	Standby: Red  Triggered: Green
Time delay	NO
Material	Anodized aluminum housing (US 28)
Suitable for Door	Wooden door, Glass door, Metal door, Fireproof door
Certificate	CE-EMC ROHS
Operating Humidity	0~95%
Operating Temperature	-20C~+55C (-4F~131F)
Dimensions	20.87 x 2.87 x 1.65 in, (530 x 73 x 42mm)
Weight	194-oz (5500g)

Product Datasheet

Datasheet-of-Dual-Door-Magnetic-Locks-.pdf

1.72 mb
