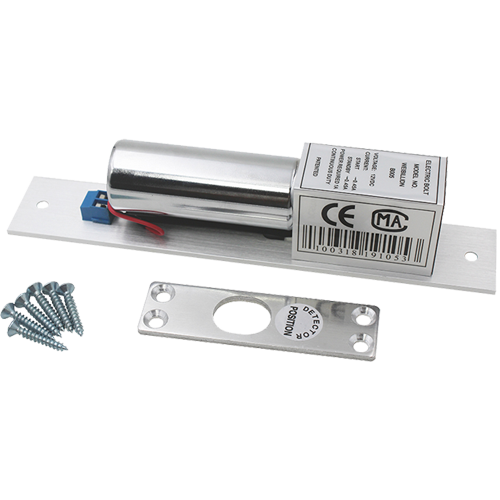

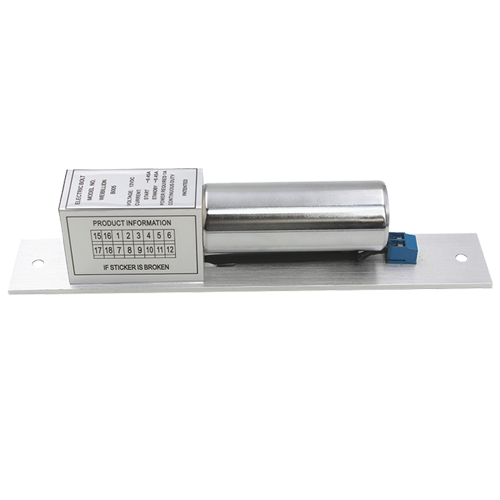

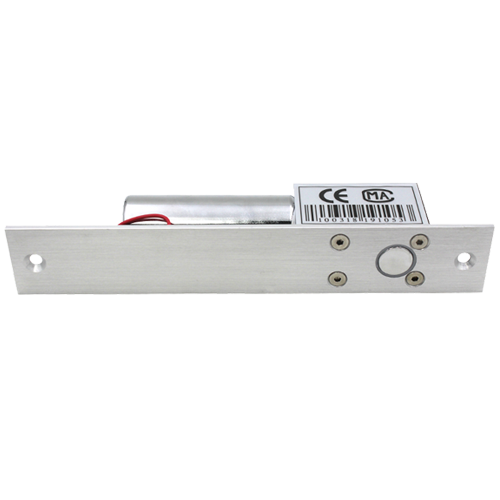

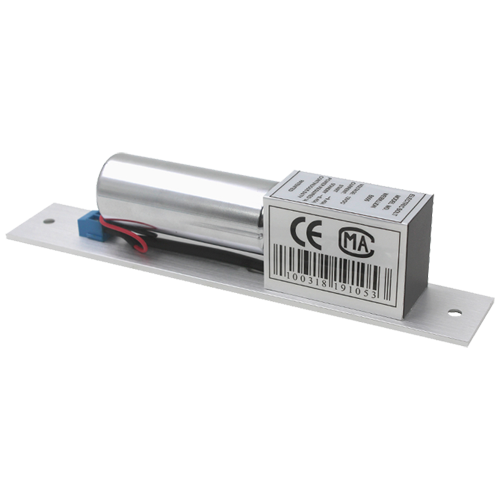

FS-EBL34-2-NT

Solenoid Bolt locks

Electric bolt locks are access control locks that operate on the principle of electromagnetic induction. Due to their stability and security, they are widely used in various access control management scenarios. Electric bolt locks are compatible with various door types, including glass doors, wooden doors, and metal doors, and are widely used in office buildings, conference rooms, and commercial shops. (And so on.)

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Electric bolt locks are access control locks that operate based on the principle of electromagnetic induction. Due to their stable and secure characteristics, they are widely used in various access control management scenarios.

Special wearable design. Mechanic life of more than 1,000,000 times.
Fail-safe type and MOV surge protection.
Stainless steel bolt is able to sustain more than 1000 kg of shear force.
Suitable for all types of 180° door.

Working voltage	12VDC
Working current	starting current :1A working current :0.12A
Coil type	Continuous current
Security type	Electri power lock,unlock
Indication	NO
Time delay	NO
Material	Aluminum
Certificate	CE/ROHS
Lock core	The diameter og 15MM stainless core,extending the length of 15MM
Locking mode	Magnetic induction
Dimensions	9.06 x 2.36 x 1.77 in, (230 x 60 x 45 mm)
Weight	16.61-oz(471g）

Product Datasheet

FS-EBL34-T-DATASHEET.pdf

0.64 mb
