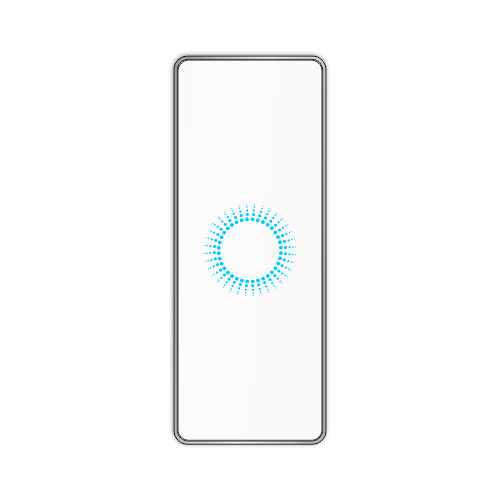

FS-CR45-EM-MF-WMSU

ID+IC readers

A versatile and high-performance RFID reader designed for modern access control systems. The device supports a wide range of selectable Wiegand formats, allowing seamless integration with various controllers and infrastructures. With fast reading speed (~0.25 s), stable read distance (20–50 mm depending on tag type), and support for both ID and IC cards, it delivers reliable, flexible, and secure identification for any environment.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Supports: IC/ID/IC&ID (optional)
Reading distance: 20~50 mm (depend tag type & environment)
Reading speed: ~0.25 s.
Wiegand settings:
- Wiegand 26/34 bit (factory defaults)
- Wiegand 26~44 bit (EM Card. Can be set by user)
- Wiegand 26~44, 47, 56, 58, 64, 66 bit (MIFARE Card. Can be set by user)

Card type	EM / Mifare / EM+Mifare
Mifare card supports	Mifare Plus, Mifare Desfire, Mifare Pro, Mifare Ultralight, Mifare Classic, NFC 213&216, S50, S70
Wiegand type	26 bit~66 bit selectable by user
Reading distance	2~5 cm ( depend environment )
Power	12-24 VDC
Power consumption	250 mA@12VDC
Response time	250 ms
LEDs indication	Standby: Red  Triggered: Green
Operating Temperature	-4°~131° F (-20°~55° C)
Dimensions	4.5 x 1.8 x 0.39 in， (115 x 45 x 10 mm)
Weight	3.53-oz (100g)

Product Manual

FS-CR86-70-50-45_datasheet_v2.pdf

5.29 mb
