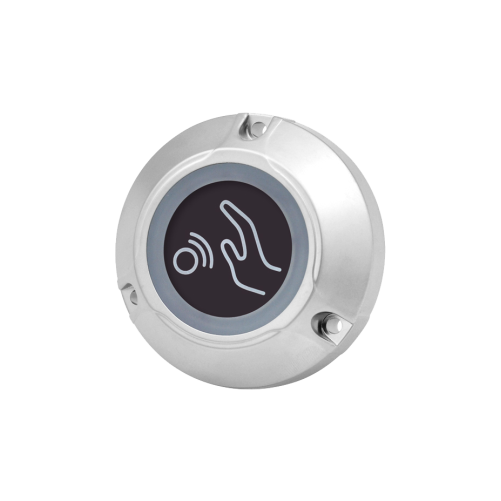

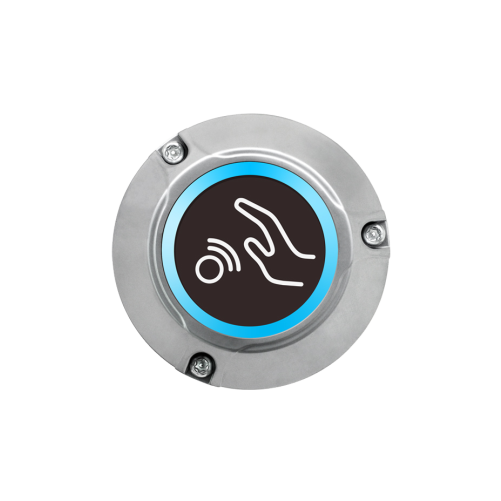

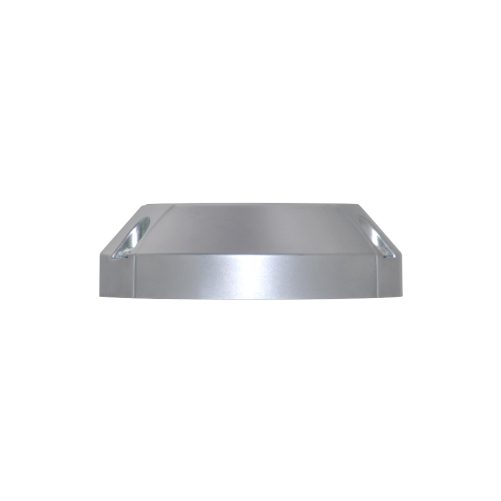

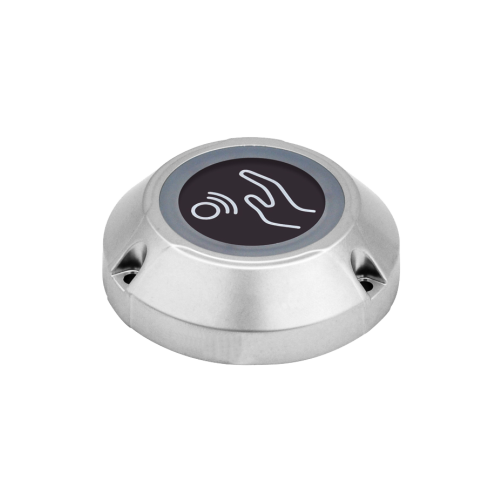

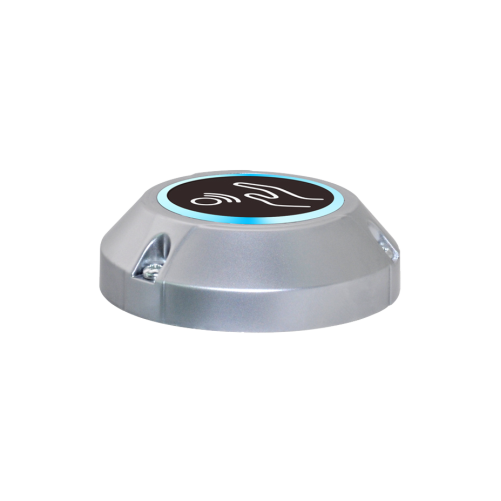

FS-ACS-N1

Press Exit buttons

Exit buttons suitable for office buildings, shops, and laboratories! Surface mount design for easy installation; highly sensitive sensor response allows you to open doors with just a wave of your hand—clean and efficient.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

With a simple wave of the hand, you can unlock a whole new access experience. It’s not only the perfect partner for access control systems, but also a thoughtful detail that enhances the quality of office and commercial spaces.

No-Touch – just wave a hand in front of the sensor
Reliable motion-sensing IR technology
Customizable Control Distance by rotary switch
Customizable Time Delay by rotary switch
Customizable Front Decal (order 500+)

Power	12V DC-24V DC
Output Contact	NO/NC/COM
Material	ABS
Suitable for Door	Hollow Door
Logo	Customizable
Led Indicator	Blue (Standby) Green (Activated)
Waterproof	Optional IP 68
Operating Temperature	-20°C~+55°C (-4°F~131°F)
Operating Humidity	0-95%(relative humidity)
Dimensions	60L60W60H(mm)

Product Datasheet

FS-ACS-N1-.pdf

1.53 mb
