FS-SR-59-883810-NO-NC-3

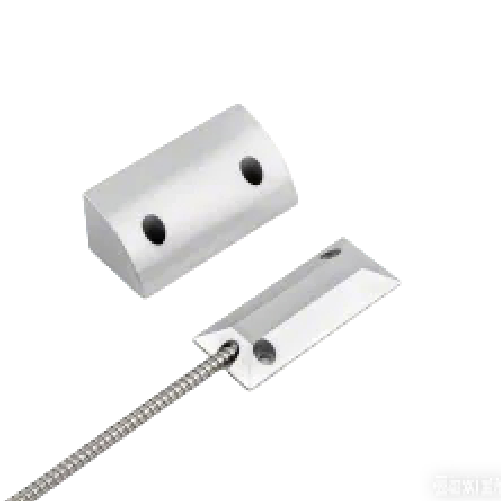

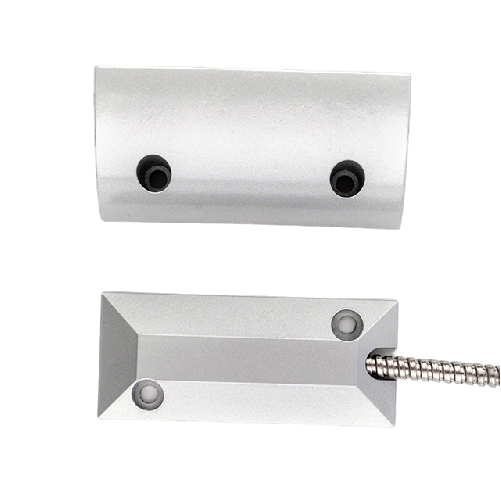

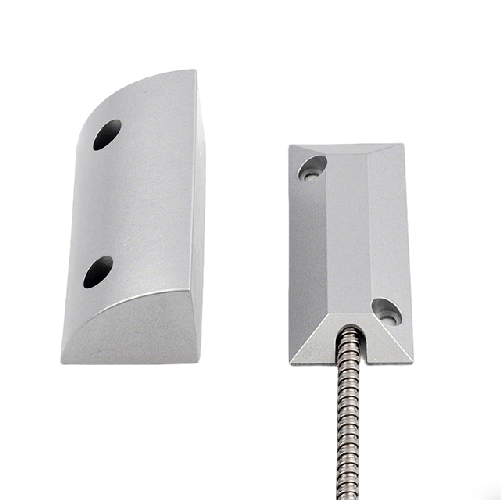

Magnetic contacts
Magnetic contacts are essential security sensors. They consist of a small magnet and a reed switch, mounted on a door or window frame. When the door is closed, the magnet holds the switch in a secure state. When the door is opened, the magnet moves away, triggering the switch to send an alarm signal to the control panel. They are widely used in homes, offices, and access control systems to detect unauthorized entry
Quantity:
  • Sensing distance: 50-70 mm
  • Current/Voltage/Power: 0.5A/100V/10W
  • Installation: buried or surface mounting
  • Connection: 22 # wire, 550MM, with 380mm stainless steel protective tube
  • Output: NC/NO/COM
Case Material Aluminum
Color grey
Sensing distance 50-70 mm
Installation buried or surface mounting
Power 0.5A/100V/10W
Connection 22 # wire, 550MM, with 380mm stainless steel protective tube
Output NC/NO/COM
