FS-PT45-10-RC-WPSQ

Wireless Exit buttons
Upgrade your access control system with our wireless exit button featuring a built-in 433 MHz transmitter. In addition to the standard relay integrated into the button, this model can send a wireless command to a receiver installed near the door lock — eliminating the need to run control cables through walls or ceilings. With a wireless range of up to 300 meters (open area), the system offers reliable and responsive operation. The package also includes a wireless key fob that duplicates the button’s functionality, providing convenient remote control. The button ensures smooth, sensitive operation and is fully compatible with all standard access control systems. It supports N.O., N.C., and COM output contacts, ensuring flexible installation and easy integration into existing setups. Ideal for offices, commercial buildings, warehouses, and secure facilities — anywhere you need simple, reliable, and cable-free door control.
Quantity:
  • Wireless module
  • Up to 30 Keyfobs
  • Up to 300 meters
  • Non-locking & Self-locking modes
  • Receiver voltage 12~24 VAC/VDC
  • Stainless steel mount plate
  • 3A relay, toggle, or as long as hand is near the sensor
  • LED illuminated sensor area for easy identification
  • Quick connect screw-less terminal block
  • Selectable LED colors (turns from blue to green or green to blue) when activated
Frequency 433.92 Mhz
Remote keyfobs up to 30 pcs
RF Distance up to 300 meters
Output Contact NO/NC/COM
Delay timer 5/10/20/30 seconds
Button power Battery 12V 27A
Receiver power 12-24 VDC
Receiver current Draw 120mA@12VDC
Relay type Form C dry contact, 3A@24VDC
Response time 10ms
LEDs indication Standby: Blue

Triggered: Green
Operating Temperature -4°~131° F (-20°~55° C)

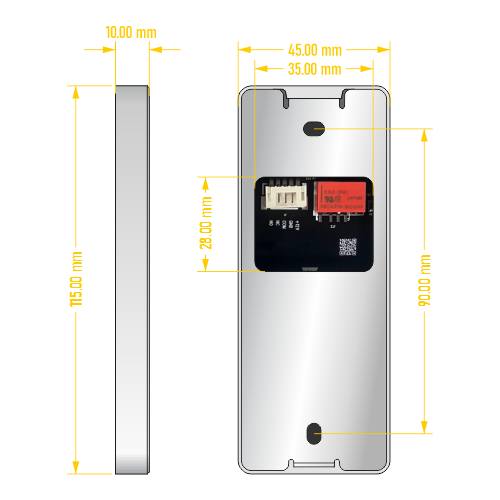

Dimensions 4.5 x 1.8 x 0.39 in, (115 x 45 x 10 mm)
Weight 1.76-oz (50g)
