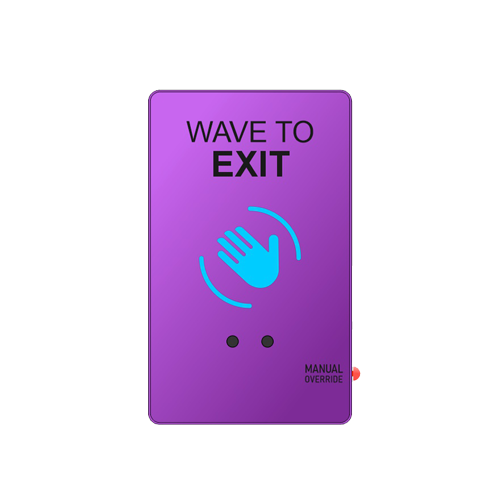

FS-NT70-10-IR-PMK1-B

All Metal Exit Buttons

The FASEEN All-metal Touchless Button use lR technology to reguest egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required this sensor is idea for use in hospitals, clinics, labs cleanrooms (to reduce the risk of contamination), schools, factories, or offices. Customer can adjust distance of hand detection and door open time for own specific needs.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Breath Light Mode (ON/OFF)
Reverse Indication Colors (ON/OFF)
Latching Mode (ON/OFF)
High-strength aluminum alloy
Wear-resistant anodizing
Manual override feature

Touchless distance	5-30 cm. (selectable)
Delay timer	1-30 sec. (selectable)
Power	12-24VDC
Output Contact	NO / NC / COM
Contact rating	30W / 1A Max
LED indication	Blue(Standby) / Green (Activated)
Enclosure	IP53 / IP 68 (optional)
Operating temperature	-40℃-+60℃
Operating humidity	0-98%

Product Datasheet

FS-NTxx-10-IR-xMK1-X_v21.pdf

2.66 mb

Sensor remains triggered

Answer:

1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.

Sensor triggers unexpectedly

Answer:

1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.

Sensor will not trigger.

Answer:

1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
