FS-FENIX03-WE4G

Network Controllers
The FS-FENIX02-S4G is a powerful evolution of the FS-FENIX01-NWE network access controller, now enhanced with integrated 4G cellular connectivity and innovative telephony-based access. Designed for reliable, scalable security in locations with limited or no fixed network infrastructure, it supports up to 20,000 users and stores 100,000 events, making it ideal for remote offices, distributed facilities, or mobile deployments. Integrated 4G LTE Module: Provides always-on cellular connectivity for real-time communication, remote management, and over-the-air updates - no Wi-Fi or Ethernet required. Open-by-Call: Authorized users gain access simply by calling the controller’s dedicated phone number—no app, card, or keyfob needed. Phone Number as Credential: Each approved phone number functions as a unique, secure access credential, managed directly through Moonwell’s Access Control Software. Phone-to-Wiegand Converter: Automatically translates incoming call events (including verified caller ID) into standard Wiegand 26/34 output.
Quantity:
  • 2 Door Network Access Controller
  • 4G Module: Open-by-Call, Phone-to-Wiegand Converter
  • Fast setup & install
  • Up to 20 000 codes
  • Up to 100 000 events
  • Wide voltage, 12~24 VAC/VDC
  • USB Setup & Firmware upgrade
  • OSDP Readers supports
  • Triple Network: 4G & Ethernet 100Mbit & Wi-Fi 802.11 b/g/n 2.4 GHz
  • Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit

Work modes 1 Door 2 sides / 2 Doors 1 sides / 2 Doors 2 sides (with OSDP readers)
Featured modes Open-by-Call, Phone-to-Wiegand Converter
4G Module 4G/LTE, 3G, 2G
Users 20 000
Events 100 000
Wiegand ports 2
Wiegand protocols Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit
Relays 2, NO/NC/COM, Form C dry contact, 3A@24VDC
Exit Button in 2
Door Position sensor in 2
OSDP Port 1
USB Port 1 (Type-C)
Network connection Ethernet 100Mbit & Wi-Fi 802.11 b/g/n 2.4 GHz & 4G
Response time 10ms
Voltage 12-24 VDC
Current Draw 200mA@12VDC
Operating Temperature -4°~131° F (-20°~55° C)

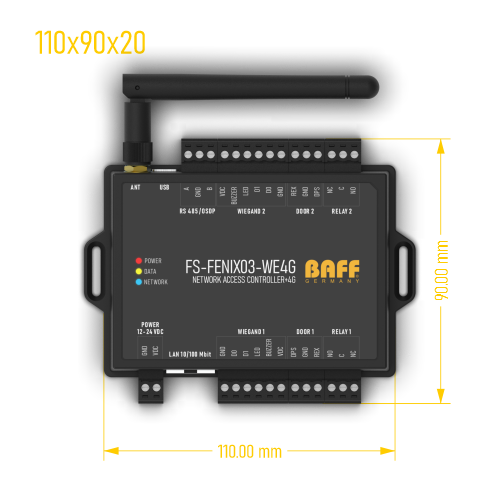

Dimensions 4.33 x 3.54 x 0.79 in ,(110 x 90 x 20 mm)
Weight 6.52oz (185g)
Sensor remains triggered
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
Sensor triggers unexpectedly
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.
Sensor will not trigger.
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
