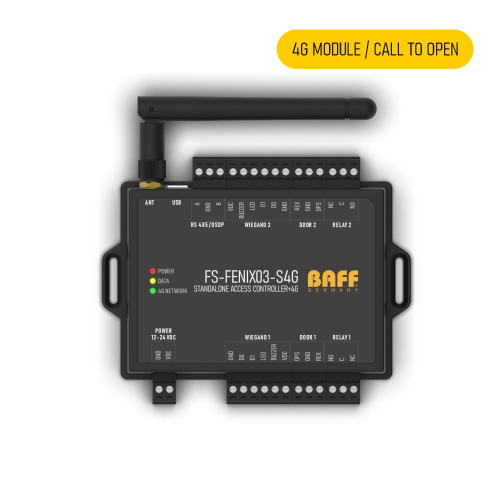

FS-FENIX03-S4G

Standalone Devices
The FS-FENIX03-S4G is a next-generation standalone access controller that combines robust local operation with the power of cellular connectivity. Designed for remote, off-grid, or infrastructure - limited environments, it supports up to 20,000 users and stores 100,000 events locally - ensuring reliable, uninterrupted access control even without a fixed network. Integrated 4G Module: Enables global cellular connectivity for remote management, notifications, and credential updates - no Wi-Fi or Ethernet required. Open-by-Call feature: Authorized users can unlock doors simply by calling the unit’s SIM-enabled phone number- no app or physical keyfob needed. Phone-to-Wiegand Converter: Incoming call events (including caller ID) are seamlessly converted to standard Wiegand 26/34 output.
Quantity:
  • 2 Door Standalone Access Controller
  • 4G Module: Open-by-Call, Phone-to-Wiegand Converter
  • Fast setup & install
  • Up to 20 000 codes
  • Up to 100 000 events
  • Wide voltage, 12~24 VAC/VDC
  • USB Setup & Firmware upgrade
  • OSDP Readers supports
  • Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit

Access work modes 1 Door 2 sides / 2 Doors 1 sides / 2 Doors 2 sides (with OSDP readers)
Featured modes Open-by-Call, Phone-to-Wiegand Converter
4G Module 4G/LTE, 3G, 2G
Users 20 000
Events 100 000
Wiegand ports 2
Wiegand protocols Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit
Relays 2, NO/NC/COM, Form C dry contact, 3A@24VDC
Exit Button in 2
Door Position sensor in 2
OSDP Port 1
USB Port 1 (Type-C)
Response time 10ms
Voltage 12-24 VDC
Current Draw 200mA@12VDC
Operating Temperature -4°~131° F (-20°~55° C)

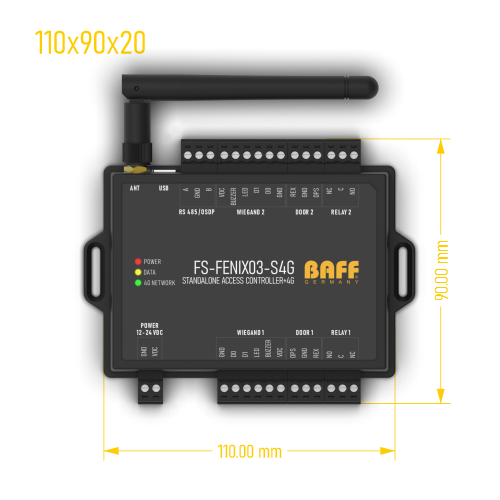

Dimensions 4.33 x 3.54 x 0.79 in ,(110 x 90 x 20 mm)
Weight 6.52oz (185g)
Sensor remains triggered
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
Sensor triggers unexpectedly
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.
Sensor will not trigger.
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
