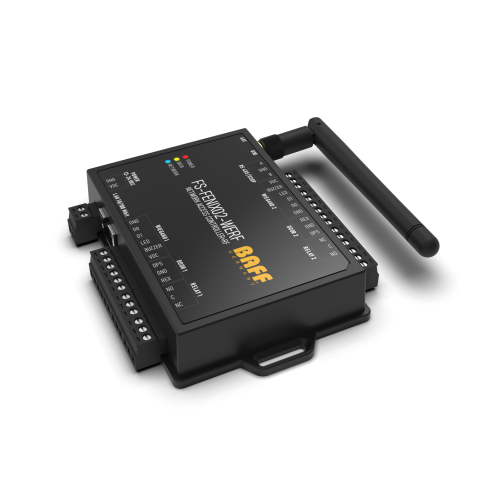

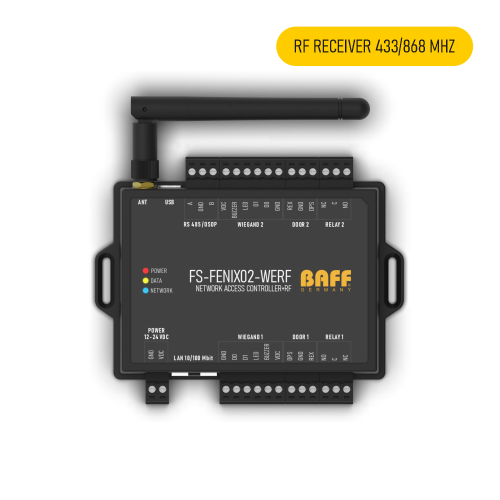

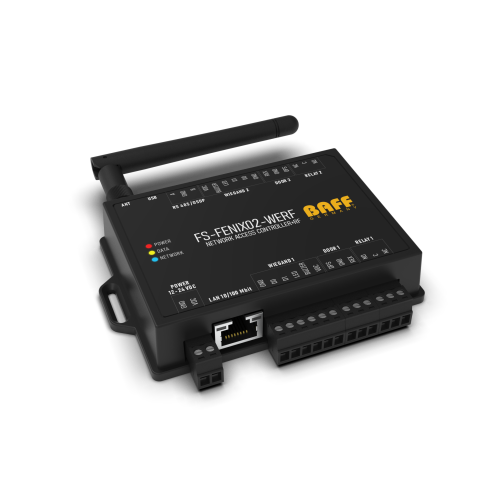

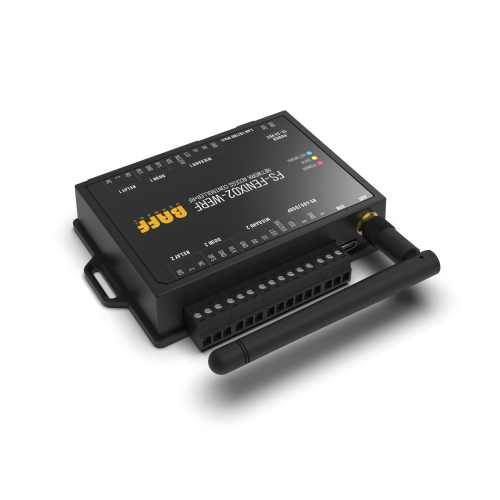

FS-FENIX02-WERF

Network Controllers
The FS-FENIX02-WERF is an advanced networked access controller that merges enterprise-grade connectivity with cutting-edge wireless credential technologies. Building on the proven FS-FENIX01-NWE platform, it now adds versatile, secure wireless options for frictionless and future-ready access—ideal for modern offices, campuses, and distributed facilities requiring both scalability and high security. Dual-Band RF Module: Integrated 433 MHz / 868 MHz receiver for compatibility with a wide range of remote keyfobs, including legacy and industrial-grade devices. Bluetooth Keyfob Receiver: Built-in 2.4 GHz Bluetooth receiver with strong AES encryption for secure, short-range mobile or keyfob-based authentication. Standard Wi-Fi and Ethernet support for real-time monitoring, remote management, and integration with Moonwell’s robust Access Control Software.
Quantity:
ADD TO CART
Description
Specifications
Documentation
FAQs
  • 2 Door Network Access Controller
  • Integrated RF Module 433 MHz / 868 MHz
  • Encryption: Microchip KEELOQ® and KEELOQ + AES-128
  • Built-in 2.4 GHz Bluetooth receiver
  • Fast setup & install
  • Up to 20 000 codes
  • Up to 100 000 events
  • Wide voltage, 12~24 VAC/VDC
  • USB Setup & Firmware upgrade
  • OSDP Readers supports
  • Dual Network Ethernet 100Mbit & Wi-Fi 802.11 b/g/n 2.4 GHz
  • Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit

Work modes 1 Door 2 sides / 2 Doors 1 sides / 2 Doors 2 sides (with OSDP readers)
RF work modes Keyfob code to Wiegand converter
RF Receiver 433 Mhz / 868 Mhz (optional)
Bluetooth keyfob support Yes, 2.4 Ghz
Encryption Microchip KEELOQ® / KEELOQ + AES-128 (optional)
Users 20 000
Events 100 000
Wiegand ports 2
Wiegand protocols Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit
Relays 2, NO/NC/COM, Form C dry contact, 3A@24VDC
Exit Button in 2
Door Position sensor in 2
OSDP Port 1
USB Port 1 (Type-C)
Network connection Ethernet 100Mbit & Wi-Fi 802.11 b/g/n 2.4 GHz
Response time 10ms
Voltage 12-24 VDC
Current Draw 200mA@12VDC
Operating Temperature -4°~131° F (-20°~55° C)

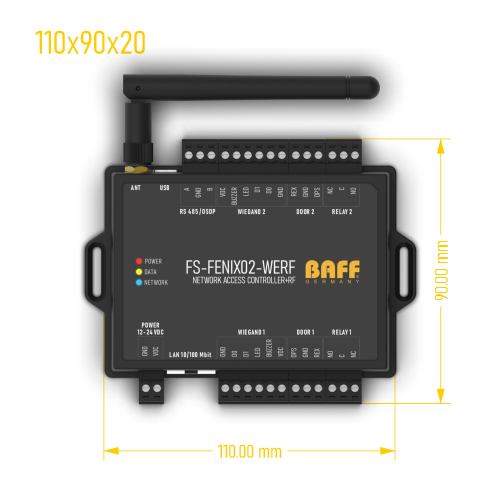

Dimensions 4.33 x 3.54 x 0.79 in ，(110 x 90 x 20 mm)
Weight 6.52oz (185g)
Sensor remains triggered
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
Sensor triggers unexpectedly
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.
Sensor will not trigger.
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
