FS-FENIX01-S

Standalone Devices
The FS-FENIX01-S is a 2-Door Standalone Access Controller designed for reliable, independent operation without requiring a network connection. Supporting up to 20,000 users and storing 100,000 events locally, it’s ideal for offices, small facilities, or remote locations where simplicity and self-sufficiency are essential. Easily configured via USB, the FS-FENIX01-S delivers secure, intelligent access control with minimal infrastructure. (For networked access control, see the FS-FENIX01-NW model.)
Quantity:
ADD TO CART
Description
Specifications
Documentation
FAQs
  • 2 Door Standalone Access Controller
  • Fast setup & install
  • Up to 20 000 codes
  • Up to 100 000 events
  • Wide voltage, 12~24 VAC/VDC
  • USB Setup & Firmware upgrade
  • OSDP Readers supports
  • Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit

Work modes 1 Door 2 sides / 2 Doors 1 sides / 2 Doors 2 sides (with OSDP readers)
Users 20 000
Events 100 000
Wiegand ports 2
Wiegand protocols Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit
Relays 2, NO/NC/COM, Form C dry contact, 3A@24VDC
Exit Button in 2
Door Position sensor in 2
OSDP Port 1
USB Port 1 (Type-C)
Response time 10ms
Voltage 12-24 VDC
Current Draw 200mA@12VDC
Operating Temperature -4°~131° F (-20°~55° C)

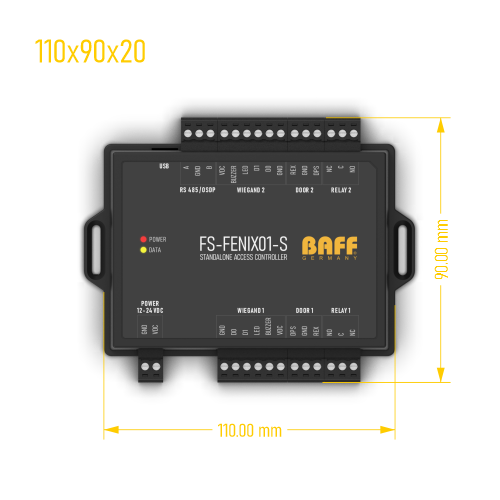

Dimensions 4.33 x 3.54 x 0.79 in ，(110 x 90 x 20 mm)
Weight 6.52oz (185g)
Sensor remains triggered
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
Sensor triggers unexpectedly
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.
Sensor will not trigger.
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
