FS-FENIX01-NWE

Network Controllers
The FS-FENIX01-NWE 2-Door Network Access Controller offers flexible, secure entry management. Featuring Wi-Fi & Ethernet connectivity, it supports up to 20,000 users and stores 100,000 events - ideal for offices, facilities, or campuses requiring scalable access control. Easily configured via USB and powered by Moonwell’s robust Access Control Software, the FS-FENIX01-NWE delivers reliable, intelligent security with minimal setup complexity. If you need complete Standalone version please check the FS-FENIX01-S.
Quantity:
ADD TO CART
Description
Specifications
Documentation
FAQs
  • 2 Door Network Access Controller
  • Fast setup & install
  • Up to 20 000 codes
  • Up to 100 000 events
  • Wide voltage, 12~24 VAC/VDC
  • USB Setup & Firmware upgrade
  • OSDP Readers supports
  • Dual Network Ethernet 100Mbit & Wi-Fi 802.11 b/g/n 2.4 GHz
  • Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit

Work modes 1 Door 2 sides / 2 Doors 1 sides / 2 Doors 2 sides (with OSDP readers)
Users 20 000
Events 100 000
Wiegand ports 2
Wiegand protocols Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit
Relays 2, NO/NC/COM, Form C dry contact, 3A@24VDC
Exit Button in 2
Door Position sensor in 2
OSDP Port 1
USB Port 1 (Type-C)
Network connection Ethernet 100Mbit & Wi-Fi 802.11 b/g/n 2.4 GHz
Response time 10ms
Voltage 12-24 VDC
Current Draw 200mA@12VDC
Operating Temperature -4°~131° F (-20°~55° C)

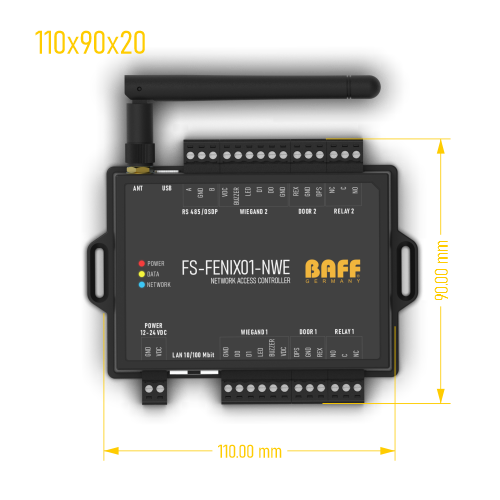

Dimensions 4.33 x 3.54 x 0.79 in ，(110 x 90 x 20 mm)
Weight 6.52oz (185g)
Sensor remains triggered
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
Sensor triggers unexpectedly
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
3. Ensure that no strong direct or reflected light source is reaching the sensor.
Sensor will not trigger.
Answer:
1. Ensure that no strong direct or reflected light source is reaching the sensor.
2. Ensure that sensor is sheltered from direct sunlight.
