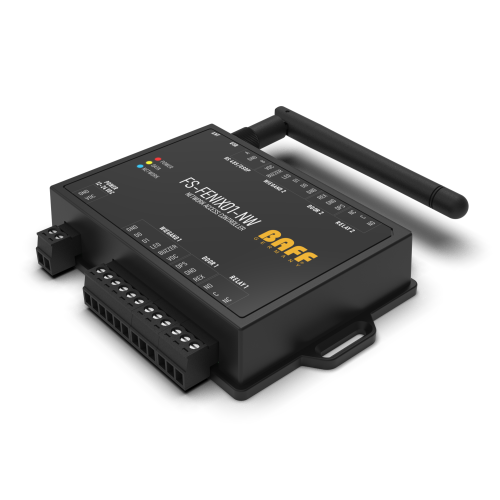

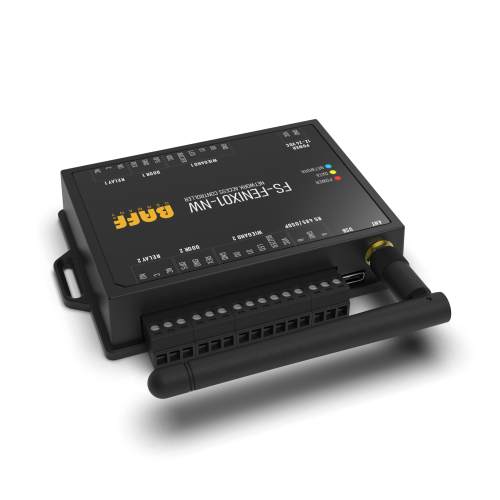

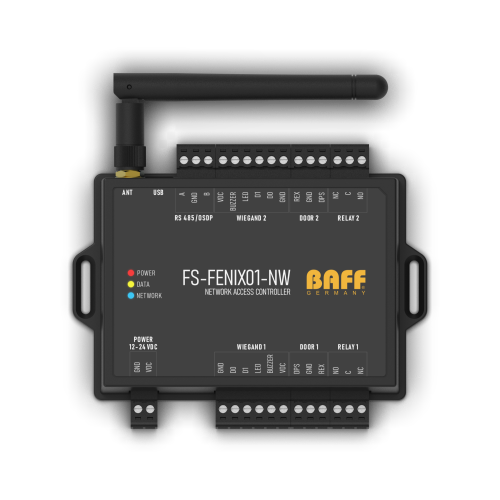

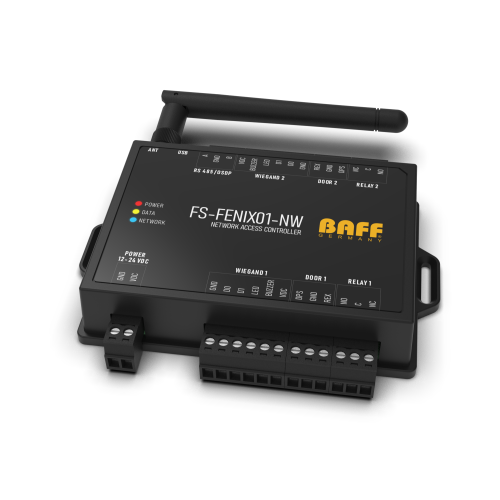

FS-FENIX01-NW

Network Controllers

The FS-FENIX01-NW 2-Door Network Access Controller offers flexible, secure entry management. Featuring Wi-Fi connectivity, it supports up to 20,000 users and stores 100,000 events - ideal for offices, facilities, or campuses requiring scalable access control. Easily configured via USB and powered by Moonwell’s robust Access Control Software, the FS-FENIX01-NW delivers reliable, intelligent security with minimal setup complexity. If you need complete Standalone version please check the FS-FENIX01-S.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

2 Door Network Access Controller
Fast setup & install
Up to 20 000 codes
Up to 100 000 events
Wide voltage, 12~24 VAC/VDC
USB Setup & Firmware upgrade
OSDP Readers supports
Wi-Fi 802.11 b/g/n 2.4 GHz
Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit

Work modes	1 Door 2 sides / 2 Doors 1 sides / 2 Doors 2 sides (with OSDP readers)
Users	20 000
Events	100 000
Wiegand ports	2
Wiegand protocols	Wiegand 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56bit
Relays	2, NO/NC/COM, Form C dry contact, 3A@24VDC
Exit Button in	2
Door Position sensor in	2
OSDP Port	1
USB Port	1 (Type-C)
Network connection	Wi-Fi 802.11 b/g/n 2.4 GHz
Response time	10ms
Voltage	12-24 VDC
Current Draw	200mA@12VDC
Operating Temperature	-4°~131° F (-20°~55° C)

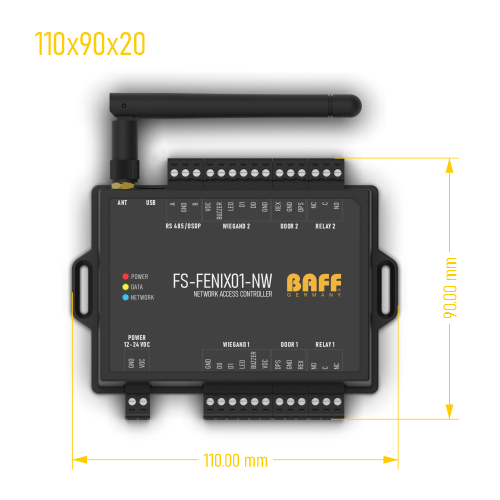

Dimensions	4.33 x 3.54 x 0.79 in ，(110 x 90 x 20 mm)
Weight	6.52oz (185g)
