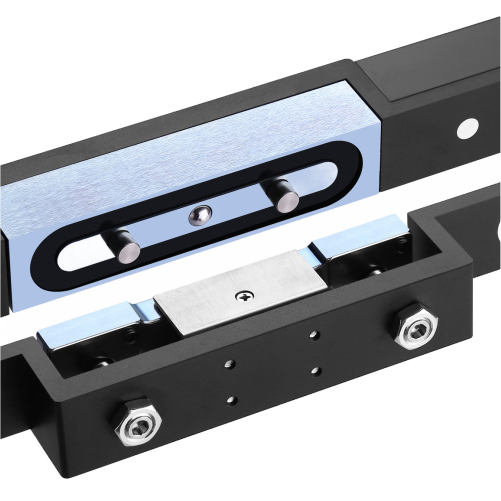

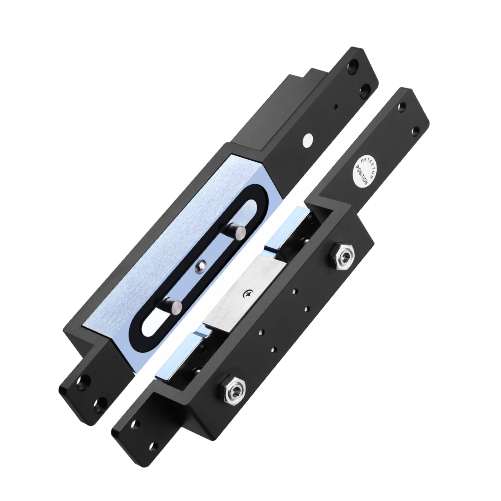

FS-ESL1000DL-Y

Shear Lock

A robust, stainless steel fail-safe electric strike lock for access control systems, supporting DC 12V/24V operation with configurable current (150–600 mA) and contact type (NO/NC). Features LED status indicators, easy mortise mounting, and reliable performance in commercial and institutional environments.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Type: Fail-safe electric strike lock
Material: Stainless steel housing for durability and corrosion resistance.
Voltage: Operates on DC 12V or DC 24V (dual-voltage compatible).
Mounting: Designed for standard door frames (mortise installation); includes mounting screws and alignment holes.
Application: Ideal for access control systems in offices, hotels, and secure facilities requiring remote door release.
Certifications: Meets international safety and EMC standards (as per Faseen product line).

Lock type	Strike Lock
Installation type	Mortise
Orientation	Left & Right
Without power	Opened (Fail-Safe)
Power	DC 12V
Delay Time	yes
Holding Force	2000Lbs(1000kg)
Holding Current	400mA
Size	182L X 30W X 25D(mm)
Weight	1600g
