FS-DPDT-G-H

Manual Call Points

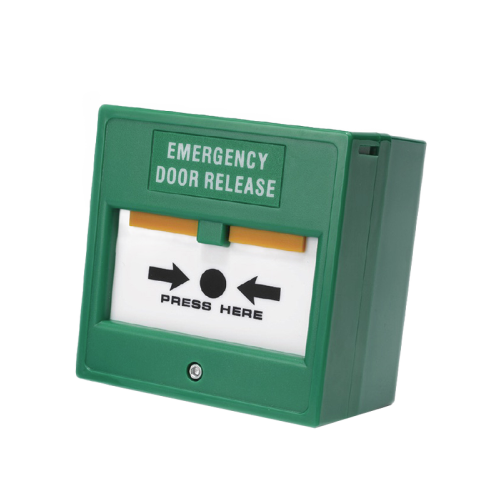

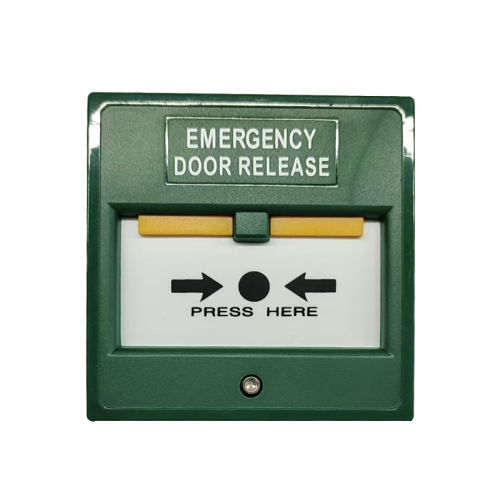

Door unlocking device with replaceable insert and protective cover. Designed for use in access control systems or other low-voltage systems. It is used for emergency unlocking of doors or other devices, with a special key included in the delivery set used to return the device to its working state after pressing. The device has a plastic protective cover that can be sealed.

Quantity:

ADD TO CART

Description

Specifications

Documentation

FAQs

Door unlocking device with replaceable insert, protective transparent cover, 2 groups of NO/NC contacts. Button reset using the key included in the set.

ABS plastic housing
2 groups of contacts
Plastic replaceable insert
Button replacement using the key included in the set
Transparent plastic cover with a hole for sealing

Device type	Emergency exit push button
Installation type	Surface-mounted

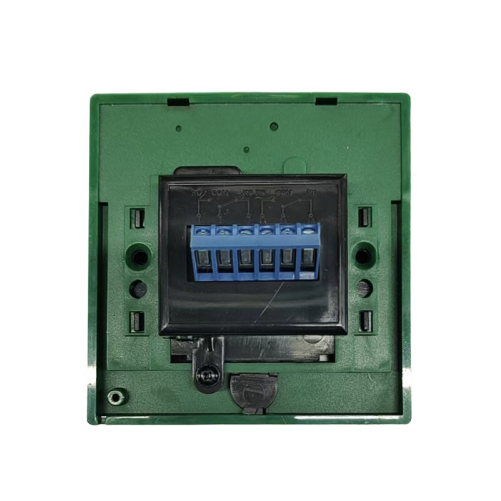

Type of contacts	2 groups of NO/NC contacts
Switching capacity	2A, 12–24 V DC
Protection class	IP24
Operating temperature	-30...+70°C
Size	3.35 x 3.54 x 2.32 in, (85 x 90 x 59 mm）
Weight	5.89-oz (167g)
